The sBITX V2 is no longer available for sale. These pages are mostly for archival purpose.

The 40 watt High Performance SDR for the tinkers, DXers and field operators

Buy Now » | Download the source code

The sBitx is an open source, high performance Hybrid SDR for the 21st century radio amateurs. Powered by an internal Raspberry Pi 4, it has CW/RTTY/PSK31/SSB and FT8 with logging software, macros, spotting in-built.

Home station, at home

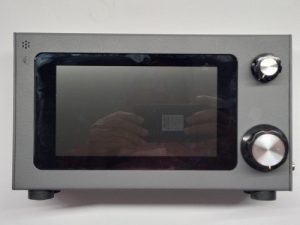

The big compact : Although compact, it has the largest display shipped with a transceiver, a capacitive, touch screen of 7 inch.
All software to run modes like FT8, RTTY, PSK31 is integrated into the radio, without any messy configurations, setup, etc. to deal with.
It switches soundlessly from transmit to receive and between bands due to its electronic of filters and T/R,
Band-stacking VFOs with 4 memories on each of the 8 bands,
9 convolution digital filters for the best audio experience.
High performance electronics with a passive-FET front end, 8 crystals’ filter and a low phase noise, temperature compensated crystal oscillator.
The built-in, editable macros that make it a breeze to work DX or compete in contests.
Add an HDMI monitor or use the browser from your PC/tablet to have a large screen experience of all the features of this amazing radio.

Go POTA, Go SOTA, Go Wild

The sBItx will neatly slip into your backpack with its compact, slim size of 10 inch x 6 inches x 2 inches and weight of under 4 pounds (less than 2 KGs) with room to spare. With its 40 watt transmit output, it is the most powerful radio you can put into your backpack.
It is armed with an XT60 power connector that you can use with lightweight 3S LiPo batteries to provide hours of field operation (The receive current is 600 mA, the transmit current can go up to 8 A depending upon the drive settings).
The built-in mic and the onscreen keyboard, macros makes it easy to operate all modes, voice/digital or CW without a key, mic or an extra computer in the field.
It has an accurate real-time clock to time FT8 transmissions and log the contacts made.
The built-in logger eliminates the need to carry the logbook too.

High Performance Radio

Bulletproof hybrid superhet with passive-FET KISS mixer
Brickwall crystal filter with 8 crystals
80 db close-in dynamic range, 90 db wide dynamic range
Low phase noise, temperature compensated reference oscillator
30-40 watts output on all bands from 80 M to 10 M
transmit IMDR of30 dB (from PEP levels)
Silent, fanless operation
Noiseless electronic T/R and band switching.
In-built 2-tone transmitter to tune the antenna and measure IMD

FT8

In-built FT8 that works out of the box.
One touch operation. Touch to call CQ or start the contact
Automatically logs all the QSOs into the built-in logbook
In-built, high accuracy, real-tme clock

CW/RTTY/PSK31 with logging and Macros

Totally noiseless, fast electronic T/R without noisy relays
In-built N1MM style Macros support Running and S&P
Uses Fldigi with its high performance decoder in the background
Raised cosine cw keying with perfect shaping
9 Ring-free Convolution filters from 3 KHz to 100 Hz
Use the onscreen touch keyboard or add a USB/wireless keyboard for effortless CW sending

SSB

The sBitx, uses convolution SDR technology and a 7 element crystal filter to provide superbSound quality with punchy clarity.

Built-in microphone and touch screen PTT as an alternative to plugging in a mic
It works with any other mic (standard audio jack)
Transmit IMD of 30 db
Receiver with variable receiver bandwidth from 3KHz to 1.8 Khz
Built-in two tone generator to align external linear amplifier or tune your antenna

Logger and Logbook

The sbitx has a logger and logbook with RDMS support.
N1MM style logger with macros and automatic logging of contacts with the frequency, mode, time automatically filled in.
Use macros on CW/RTTY/PSK to send out standard messages with the press of a button/key.

Telnet

See the spots, dx clusters on the radio with in-built telnet to DX Clusters, Reverse Beacon, PSK Reporter, etc.

Hackable code, skinnable GUI

Full source code, circuit and explanations on github.com/afarhan/sbitx
Write custom apps in javascript without learning SDR coding
Open source, hackable SDR written in C
Develop your own skins and UI in HTML/CSS/Javascript
More modes and functions planned.

Access and operate your sBitx over the home Wifi

With your sbitx connected to the home wifi, just open http://sbitx.local on the browser of your phone/tab/pc and start operating your radio!
With the bigger screen of your PC or tablet, you can have an expanded user interface of the sbitx

Accessibility & Command line support

The sBitx project is committed to providing eye-free usage for the sbitx. As a first step, this release features a command line interface that provides all the features of the GUI.

Brief Specifications

Frequency	Receive; 500 KHz to 30 MHz, Transmit: 3500-4000, 7000-7300,10000-10150, 14000-14350, 18000-18200, 21000-21450, 24800-25000, 28000-29700 (KHz)
Power Output	40 watts on 80M – 20M, 30 watts higher bands
Power Consumption	Receive: 600 mA Transmit : 9A
VFOs	Two VFOs A and B, with split operation, tunable in steps of 100 KHz, 10 KHz, 1 KHz, 100Hz and 10 Hz. Direct frequency entry from the keyboardRIT : Receiver incremental tuning +/- 25 KHz Split operation: Cross band
Band stacking	4 frequencies/modes on each band, selectable by repeatedly pressing the band switch.
Modes	USB, LSB, CW, CW-Reverse, RTTY(45), PSK31, FT8 (with on-display decoding and sending) 2-Tone test signal for intermodulation testing and PEP measurements.
Logging	Built-in logger with N1MM format macros, Auto incremental Exchange number of contesting.
Recording	Record your QSOs int WAV format files
Third party apps	Fldigi: FLdigi intergrated via xml-rpc. QRZ.com: Queries your contact’s callsign on qrz.com
Receiver	Noise Figure: +15 dB, IIP3 : +28 dBm
Transmitter	Upto 40 watts of variable output power Better than -43 dBc suppression of spurious signals Speech compression on SSB
Telnet	Connects to RBN and DX clusters from the radio
